Procuts detail

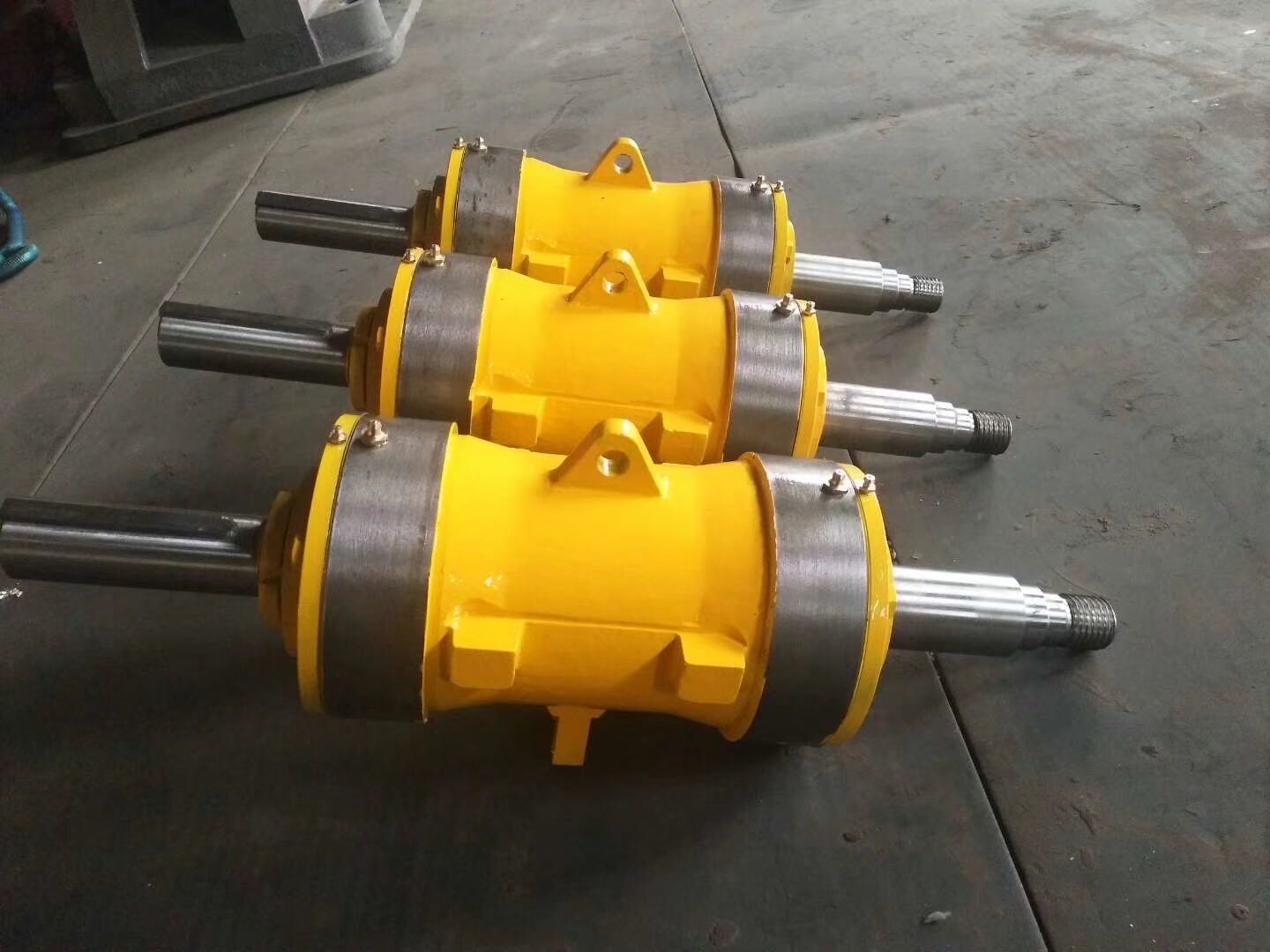

NEXA Bearing Assembly Compatibility Table
| Bearing Assembly Code | Applicable Slurry Pump Models | Bearing Brands |
|---|---|---|
| B005M | 1.5/1B-AH, 2/1.5B-AH | ZWZ, SKF, TIMKEN |
| C005M | 3/2C-AH, 4/3C-AH | ZWZ, SKF, TIMKEN |
| D005M | 4/3D-AH, 6/4D-AH | ZWZ, SKF, TIMKEN |
| E005M | 6/4E-AH, 8/6E-AH | ZWZ, SKF, TIMKEN |
| R005M | 8/6R-AH, 10/8R-M | ZWZ, SKF, TIMKEN |
| FAM005M | 8/6F-AH, 10/8F-AH, 12/10F-AH, 6/4F-HH | ZWZ, SKF, TIMKEN |
| SH005M | 10/8ST-AH, 12/10ST-AH, 14/12ST-AH | ZWZ, SKF, TIMKEN |
| TH005M | 16/14TU-AH, 18/16TU-AH, 20/18TU, 16/14TU-GH | ZWZ, SKF, TIMKEN |
| CAM005M | 1.5/1C-HH, 75C-L | ZWZ, SKF, TIMKEN |
| DAM005M | 3/2D-HH, 6/4D-G, 4AHF | ZWZ, SKF, TIMKEN |
| EAM005M | 4/3E-HH, 10/8E-M, 8/6E-G, 6AHF | ZWZ, SKF, TIMKEN |
| ASC005M | 20A-L | ZWZ, SKF, TIMKEN |
| BSC005M | 50B-L | ZWZ, SKF, TIMKEN |
| ESC005M | 150E-L | ZWZ, SKF, TIMKEN |
| S005M | 300S-L | ZWZ, SKF, TIMKEN |
| F005M | 10/8F-G | ZWZ, SKF, TIMKEN |
| S005-3M | 10/8S-G, 10/8S-GH | ZWZ, SKF, TIMKEN |
| G005M | 12/10G-G, 14/12G-G, 12/10G-GH | ZWZ, SKF, TIMKEN |
Main Wear Parts for Slurry Pumps
1. Metal Lined Slurry Pump Spares (A05, A33, A07, A49)
| Component | Description |
|---|---|
| Cover Plate | Protects pump casing |
| Throat Bush | Seals suction chamber |
| Volute Liner | Guides fluid flow |
| Impeller | Rotates to pump slurry |
| Frame Plate Liner Insert | Reduces wear on frame plate |
| Stuffing Box | Houses shaft seals |
| Frame Plate | Structural support for internal parts |
| Shaft Sleeve | Protects shaft from wear |
| Expeller | Assists in sealing |
| Expeller Ring | Seals against leakage |
| Bearing Assembly | NEAX-branded bearing components |
2. Rubber Lined Slurry Pump Spares (R55, PU)
| Component | Description |
|---|---|
| Throat Bush | Flexible seal for abrasive slurries |
| Cover Plate Liner | Abrasion-resistant lining |
| Impeller | Rubber-coated for corrosion resistance |
| Frame Plate Liner Insert | Reduces erosion in frame plate |
| Expeller Ring | Seals against leakage |
3. Bearing Assembly Small Parts
| Component | Description |
|---|---|
| Bearing Housing | Encases bearings |
| Grease Retainer | Retains lubricant |
| Bearing | Supports shaft rotation |
| Piston Ring | Seals pressure |
| Labyrinth | Prevents contaminant ingress |
| End Cover | Seals bearing housing |
| Lock Nut | Secures bearing components |
4. Seal Accessories Small Parts
| Component | Description |
|---|---|
| Stuffing Box | Houses packing material |
| Packing | Seals shaft against leakage |
| Neck Ring | Supports packing |
| Split Packing Gland | Compresses packing |
| Lantern Ring | Guides packing installation |
| Lantern Restrictor | Limits packing extrusion |
| Expeller | Forces sealing against pressure |
| Expeller Ring | Seals against leakage |
| Shaft Sleeve | Protects shaft surface |
| Shaft Spacer | Adjusts impeller clearance |
| Mechanical Seal | Dynamic sealing device |
| Mechanical Seal Box | Houses mechanical seal components |
